4TUODI TDL-5519 Double-gated switch 12V-24VDC 60W Dupont wire port integrated Door control wardrobe sensor light
Production description
l Product introduction: Aluminum alloy shell, embedded installation, touch the touch area with your hand to turn on the output
light, touch it again to turn off the light, when the output light is on, long press the touch area to adjust the light
steplessly.
l Product parameters:
1. Input voltage: 5V-24VDC
2. Output current: 5A
3. Load power: 5V (25W) 12V (60W) 24V (120W) resistive load
4. Installation method: embedded installation, opening Size 12mm
5. Storage temperature: -20º~+60º
6. Environmental protection requirements: ROHS
1. Installation instructions:
1. Make a hole first (12mm diameter and 21mm depth), and pay attention to the wire hole.
2. Insert the sensor switch into the hole
3. Connect the output end of the switch to the LED lamp
4. Connect the input end to the power adapter
5. If the opening is too small, the product will not be able to be installed, please use a suitable plastic hose against it. A
rubber mallet is tapped in gently to avoid damaging the surface of the sensor switch. Four.
Matters needing attention:
1. In order to achieve the best use of the product, it is recommended to purchase the special power supply provided by our
company.
2. During embedded installation, a 12 mm diameter and 21 mm deep circular hole needs to be opened on the fixed plate surface (a
hole should be opened behind the circular hole. 10mm diameter wire hole) and then insert the product into the round hole.
3. Please use a suitable plastic hose to gently tap it with a rubber mallet to avoid damaging the surface of the sensor switch.
Model Name | TDL-5519M |
Input Voltage(V) | 12-24V DC |
Certification | PSE, EMC, RoHS, CE, FCC, LVD, Reach, UL |

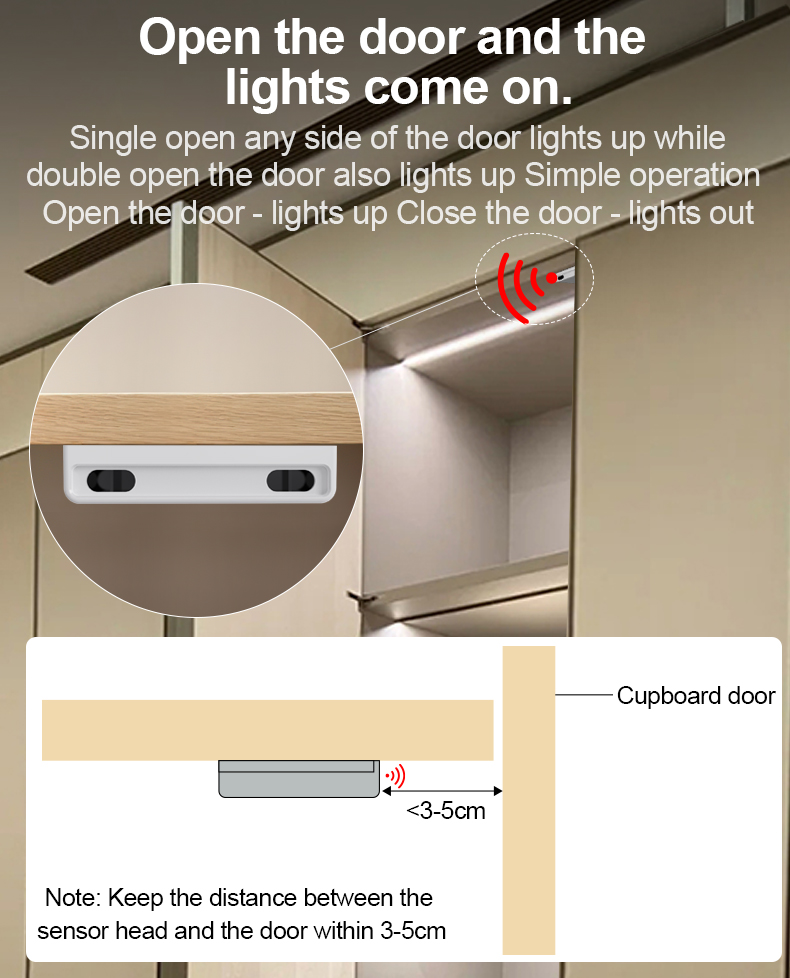

Detecting Method | Door Control Sensor, open door light on, close door light off |
TUODI TDL-5519 Double-gated switch 12V-24VDC 60W Dupont wire port integrated Door control wardrobe sensor light
